TGA4507 Datasheet, Amplifier, TriQuint Semiconductor

TGA4507 Features

• Amplifier
• TGA4507 Typical Frequency Range: 28 - 36 GHz 2.3 dB Nominal Noise Figure 22 dB Nominal Gain 12 dBm Nominal P1dB Bi

PDF File Details

Part number:

TGA4507

Manufacturer:

TriQuint Semiconductor

File Size:

327.21kb

Download:

📄 Datasheet

Description:

Ka band low noise amplifier.

TGA4507 Application

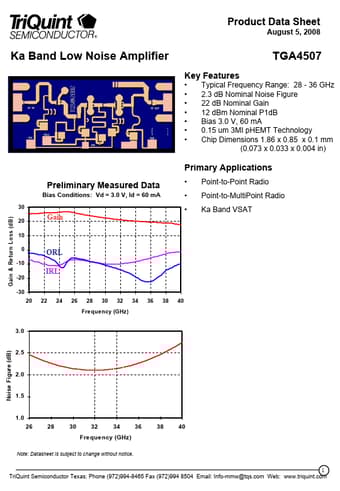

• Applications Preliminary Measured Data Bias Conditions: Vd = 3.0 V, Id = 60 mA 30 Gain & Return Loss (dB) 20 10 0 -10 -20 -30 20 22 24 26 28 30 32 3
