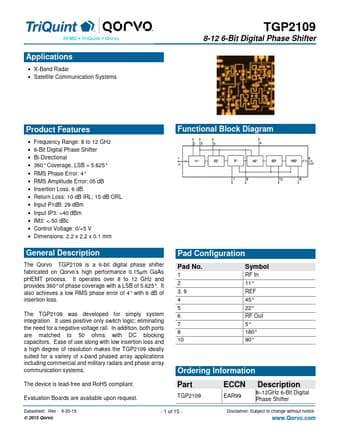

TGP2109 Datasheet, Shifter, TriQuint Semiconductor

TGP2109 Features

• Shifter
• Frequency Range: 8 to 12 GHz
• 6-Bit Digital Phase Shifter
• Bi-Directional
• 360°Coverage, LSB = 5.625°
• RMS Phase Error: 4°
• RMS Am

PDF File Details

Part number:

TGP2109

Manufacturer:

TriQuint Semiconductor

File Size:

691.84kb

Download:

📄 Datasheet

Description:

Digital phase shifter. The Qorvo TGP2109 is a 6-bit digital phase shifter fabricated on Qorvo’s high performance 0.15μm GaAs pHEMT process. It operates over

TGP2109 Application

• Applications
• X-Band Radar
• Satellite Communication Systems TGP2109 8-12 6-Bit Digital Phase Shifter Product Features
