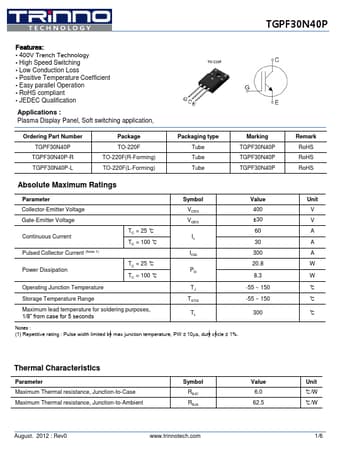

TGPF30N40P Datasheet, Igbt, TRinno

TGPF30N40P Features

• Igbt
• 400V Trench Technology
• High Speed Switching
• Low Conduction Loss
• Positive Temperature Coefficient
• Easy parallel Operation
• RoH

PDF File Details

Part number:

TGPF30N40P

Manufacturer:

TRinno

File Size:

816.05kb

Download:

📄 Datasheet

Description:

Field stop trench igbt.

TGPF30N40P Application

• Applications : Plasma Display Panel, Soft switching application, C GCE Ordering Part Number TGPF30N40P TGPF30N40P-R TGPF30N40P-L Package TO-220F
