TGP2103

8.5 - 11 GHz 6-bit Phase Shifter

TGP2103 Features

* and Performance

* Frequency Range: 8.5 - 11 GHz 5dB Nominal Insertion Loss 2deg RMS Phase Error @ 9.5GHz 0.2dB RMS Amp. Error @ 9.5GHz Negative Control Voltage 0.5µm MESFET Technology Chip dimensions: 3.25 x 3.48 x 0.15 mm (0.128 x

TGP2103 General Description

The TriQuint TGP2103 is a 6-bit digital phase shifter MMIC design using TriQuint’s proven 0.5μm MESFET process. The TGP2103 will support a variety of X-Band phased array applications including military radar. The 6-bit design utilizes a compact topology that achieves a 11.31mm2 die area and high per.

TGP2103 Datasheet (582.60 KB)

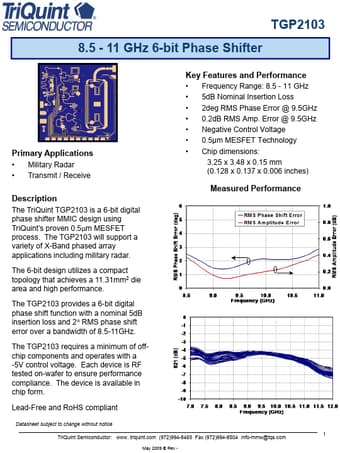

Preview of TGP2103 PDF

Datasheet Details

Part number:

TGP2103

Manufacturer:

TriQuint Semiconductor

File Size:

582.60 KB

Description:

8.5 - 11 ghz 6-bit phase shifter.
