TGP2109-SM 8 - 12 GHz 6-Bit Digital Phase Shifter

Qorvo’s TGP2109-SM is a packaged 6-bit digital phase shifter fabricated on Qorvo’s high performance 0.15μm GaAs pHEMT process. It operates over 8 to 12 GHz and provides 360° of phase coverage with a LSB of 5.625°. It also achieves a low RMS phase error of 4° with 6 dB of insertion loss. The TGP2109-.

TGP2109-SM Features

* Frequency Range: 8 to 12 GHz

* 6-Bit Digital Phase Shifter

* Bi-Directional

* 360° Coverage, LSB = 5.625°

* RMS Phase Error: 4°

* RMS Amplitude Error: 0.5 dB

* Insertion Loss: 6 dB

* Return Loss: 10 dB IRL; 15 dB ORL

* Input P

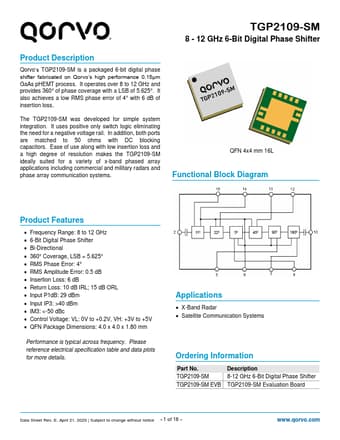

TGP2109-SM-Qorvo.pdf

TGP2109-SM Datasheet Preview — Preview of TGP2109-SM PDF

Datasheet Details

Part number:

TGP2109-SM

Manufacturer:

Qorvo

File Size:

707.27 KB

Description:

8 - 12 ghz 6-bit digital phase shifter.
