TGP2102 Datasheet, Shifter, TriQuint Semiconductor

TGP2102 Features

• Shifter and Performance Frequency Range: 32 - 37 GHz 7dB Nominal Insertion Loss 3.5deg RMS Phase Error @ 35GHz 0.4dB RMS Amp. Error @ 35GHz Negative Control Voltage Single-Ended Logic 0.25µm pH

PDF File Details

Part number:

TGP2102

Manufacturer:

TriQuint Semiconductor

File Size:

444.67kb

Download:

📄 Datasheet

Description:

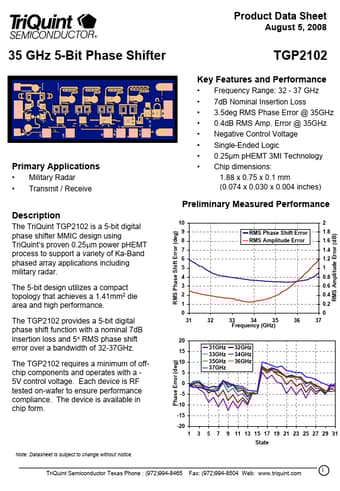

35 ghz 5-bit phase shifter. RMS Phase Shift Error (deg) 8 7 6 5 4 3 2 1 0 31 32 1.6 1.4 1.2 1 0.8 0.6 0.4 0.2 0 www.DataSheet.net/ The 5-bit design utilizes

TGP2102 Application

• Applications
• Military Radar Transmit / Receive Preliminary Measured Performance Description RMS Phase Shift Error (deg) 8 7 6
