TGP2100

30 GHz 5-bit Phase Shifter

TGP2100 Features

* and Performance Positive Control Voltage Single-Ended Logic CMOS Compatible Frequency Range: 28 - 32 GHz 0.25µm pHEMT 3MI Technology Chip dimensions: 1.88 x 0.75 x 0.1 mm (0.074 x 0.030 x 0.004 inches) Preliminary Measured Performance 10 RMS Phase Shift Error (deg) 9 8 7 6 5 4 3 2 1 0 28 20 15 Phas

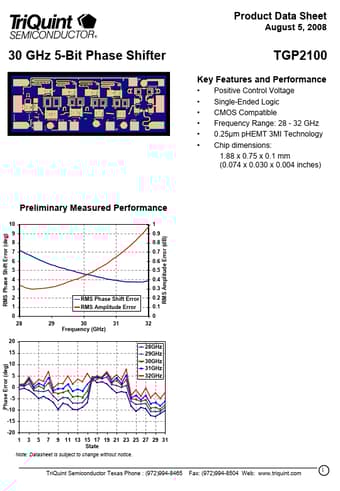

TGP2100 Datasheet (433.03 KB)

Preview of TGP2100 PDF

Datasheet Details

Part number:

TGP2100

Manufacturer:

TriQuint Semiconductor

File Size:

433.03 KB

Description:

30 ghz 5-bit phase shifter.
