TGP2105

6 to 18 GHz 6-Bit Digital Phase Shifter

TGP2105 Features

* Frequency Range: 6 to 18 GHz

* 6-Bit Digital Phase Shifter

* 360°Coverage, LSB = 5.625°

* RMS Phase Error: 4°

* RMS Amplitude Error: 0.45 dB

* Insertion Loss: 12 dB

* Input P1dB: >25 dBm

* Input IP3: >41

TGP2105 General Description

TriQuint’s TGP2105 is a 6-bit, digital phase shifter fabricated on TriQuint’s high performance 0.15μm GaAs pHEMT process. It operates over 6 to 18 GHz and provides 360° of phase coverage with a LSB of 5.625°. It also achieves a low RMS phase error of 4° with 8 dB of insertion loss over all states. T.

TGP2105 Datasheet (693.49 KB)

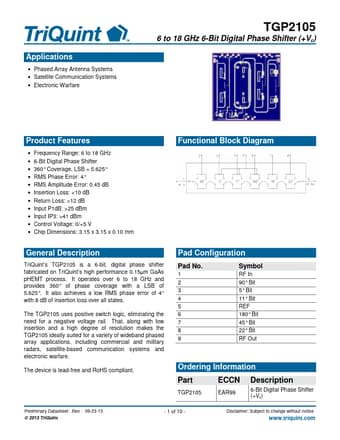

Preview of TGP2105 PDF

Datasheet Details

Part number:

TGP2105

Manufacturer:

TriQuint Semiconductor

File Size:

693.49 KB

Description:

6 to 18 ghz 6-bit digital phase shifter.
Applications

* Phased Array Antenna Systems

* Satellite Communication Systems

* Electronic Warfare TGP2105 6 to 18 GHz 6-Bit .
