MA4AGSW1A

AlGaAs SPST Non-Reflective PIN Diode Switch

Tyco Electronics

MA4AGSW1A Features

* Ultra Broad Bandwidth: 10 GHz to 50 GHz Functional Bandwidth: 100 MHz to 70 GHz 1.0 dB Insertion Loss, 35 dB Isolation at 50 GHz M/A-COM’s unique patent pending AlGaAs hetero-junction anode technology.

* Silicon Nitride Passivation

* Polymide S

MA4AGSW1A General Description

M/A-COM’s MA4AGSW1A is an Aluminum-Gallium Arsenide anode enhanced, SPST Non-Reflective PIN diode switch. AlGaAs anodes, which utilize M/A-COM’s patent pending hetero-junction technology, produce less loss than conventional GaAs processes, by as much as a 0.3 dB reduction in insertion loss at 50 GHz.

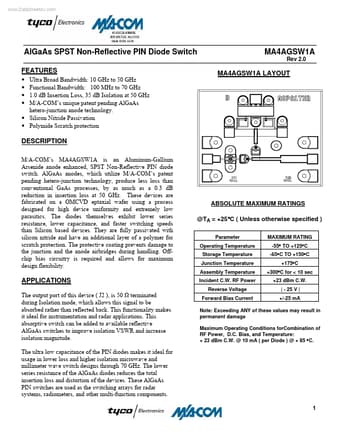

MA4AGSW1A Datasheet (269.51 KB)

MA4AGSW1A Datasheet Preview — Preview of MA4AGSW1A PDF

Datasheet Details

Part number:

MA4AGSW1A

Manufacturer:

Tyco Electronics

File Size:

269.51 KB

Description:

Algaas spst non-reflective pin diode switch.
