MA4AGSW8-2 Datasheet, Switch, Tyco Electronics

MA4AGSW8-2 Features

  • Switch n n n n n n MA4AGSW8-2 Layout Specified Performance : 50 MHz to 40 GHz Operational performance: 50 MHz to 50 GHz 2.0 dB Typical Insertion Loss at 40 GHz 30 dB Typical Isolation at 40

PDF File Details

Part number:

MA4AGSW8-2

Manufacturer:

Tyco Electronics

File Size:

181.93kb

Download:

📄 Datasheet

Description:

Algaas sp8t pin diode switch. M/A-COM’s MA4AGSW8-2 is an Aluminum-Gallium-Arsenide (AlGaAs) anode enhanced, SP8T PIN diode Series Switch. Operation is accomplished

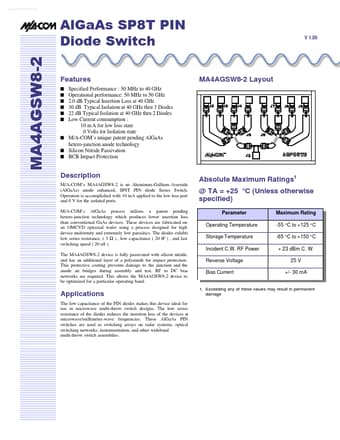

Datasheet Preview: MA4AGSW8-2 📥 Download PDF (181.93kb)
Page 2 of MA4AGSW8-2 Page 3 of MA4AGSW8-2

MA4AGSW8-2 Application

  • Applications The low capacitance of the PIN diodes makes this device ideal for use in microwave multi-throw switch designs. The low series resistanc
