MA4AGSW8-1, AlGaAs SP8T PIN Diode Series Switch

www.DataSheet4U.com AlGaAs SP8T PIN Diode Series Switch V 1.00 MA4AGSW8-1 .
M/A-COM’s MA4AGSW8-1 is an Aluminum-Gallium- Arsenide (AlGaAs) anode enhanced, SP8T PIN diode Series Switch.

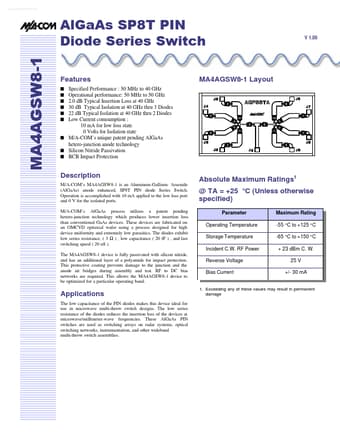

datasheet Preview Page 1 from Datasheet4u.com

MA4AGSW8-1_TycoElectronics.pdf

MA4AGSW8-1 Datasheet Preview — Preview of MA4AGSW8-1 PDF

Datasheet Details

Part number:

MA4AGSW8-1

Manufacturer:

Tyco Electronics

File Size:

182.00 KB

Description:

AlGaAs SP8T PIN Diode Series Switch

Features

* n n n n n n MA4AGSW8-1 Layout Specified Performance : 50 MHz to 40 GHz Operational performance: 50 MHz to 50 GHz 2.0 dB Typical Insertion Loss at 40 GHz 30 dB Typical Isolation at 40 GHz thru 3 Diodes 22 dB Typical Isolation at 40 GHz thru 2 Diodes Low Current comsumption : 10 mA for low loss stat

Applications

* The low capacitance of the PIN diodes makes this device ideal for use in microwave multi-throw switch designs. The low series resistance of the diodes reduces the insertion loss of the devices at microwave/millimeter-wave frequencies. These AlGaAs PIN switches are used as switching arrays on radar s
