MA4EX190H1-1225T - Silicon Double Balanced HMIC Mixer

Tyco Electronics

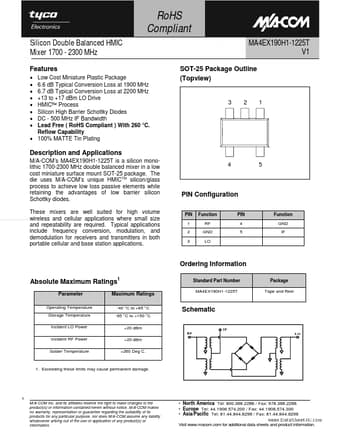

MA4EX190H1-1225T Datasheet Preview — Preview of MA4EX190H1-1225T PDF

Datasheet Details

Part number	MA4EX190H1-1225T
Manufacturer	Tyco Electronics
File Size	119.35 KB
Description	Silicon Double Balanced HMIC Mixer
Datasheet	MA4EX190H1-1225T_TycoElectronics.pdf

MA4EX190H1-1225T Product details

Description

and Applications M/A-COM’s MA4EX190H1-1225T is a silicon monolithic 1700-2300 MHz double balanced mixer in a low cost miniature surface mount SOT-25 package.The die uses M/A-COM’s unique HMICTM silicon/glass process to achieve low loss passive elements while retaining the advantages of low barrier silicon Schottky diodes.These mixers are well suited for high volume wireless and cellular applications where small size and repeatability are required.Typical applications include frequency convers

Features

Low Cost Miniature Plastic Package 6.6 dB Typical Conversion Loss at 1900 MHz 6.7 dB Typical Conversion Loss at 2200 MHz +13 to +17 dBm LO Drive HMIC™ Process Silicon High Barrier Schottky Diodes DC - 500 MHz IF Bandwidth Lead Free ( RoHS Compliant ) With 260 °C. Reflow Capability.
100% MATTE Tin Plating MA4EX190H1-1225T V1 SOT-25 Package Outline (Topview) 3 2 1.
