MA4EX240L-1225

Silicon Double Balanced HMIC Mixer 1700 - 2500 MHz

MA4EX240L-1225 Features

* Low Cost Miniature Plastic Package Low Conversion Loss: 6.4 dB at 2100 MHz 7.4 dB at 2400 MHz +3 to +7 dBm LO Drive HMIC™ Process Silicon Low Barrier Schottky Diodes DC -400 MHz IF Bandwidth SOT-25 Outline 5 4 Description M/A-COM’s MA4EX2

MA4EX240L-1225 General Description

M/A-COM’s MA4EX240L-1225 is a silicon monolithic 1700 2500 MHz double balanced mixer in a low cost miniature surface mount SOT-25 package. The dies uses M/A-COM’s unique HMIC™ silicon/glass process to achieve low loss passive elements while retaining the advantages of low barrier silicon Schottky di.

MA4EX240L-1225 Datasheet (42.16 KB)

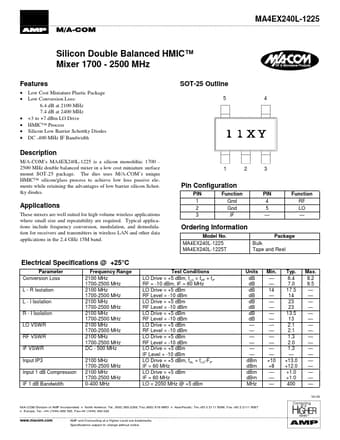

Preview of MA4EX240L-1225 PDF

Datasheet Details

Part number:

MA4EX240L-1225

Manufacturer:

Tyco

File Size:

42.16 KB

Description:

Silicon double balanced hmic mixer 1700 - 2500 mhz.
