MA4EX190L-1225 - Silicon Double Balanced HMICTM Mixer / 1700 - 2300 MHz

Tyco

Datasheet Details

Part number	MA4EX190L-1225
Manufacturer	Tyco
File Size	126.75 KB
Description	Silicon Double Balanced HMICTM Mixer / 1700 - 2300 MHz
Datasheet	MA4EX190L-1225_TycoElectronics.pdf

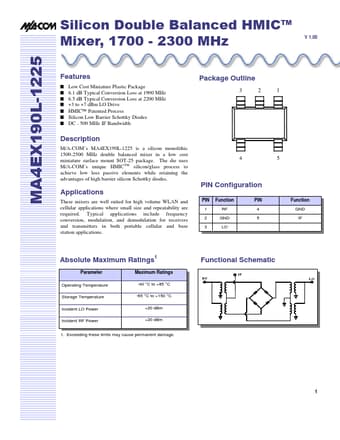

M/A-COM’s MA4EX190L-1225 is a silicon monolithic 1500-2500 MHz double balanced mixer in a low cost miniature surface mount SOT-25 package.

n n n n n n n Package Outline 3 2 1 Low Cost Miniature Plastic Package 6.1 dB Typical Conversion Loss at 1900 MHz 6.5 dB Typical Conversion Loss at 2200 MHz +3 to +7 dBm LO Drive HMIC™ Patented Process Silicon Low Barrier Schottky Diodes DC - 500 MHz IF Bandwidth.
