MA4EX190H-1225 - Silicon Double Balanced HMICTM Mixer / 1700 - 2300 MHz

Tyco

Datasheet Details

Part number	MA4EX190H-1225
Manufacturer	Tyco
File Size	120.54 KB
Description	Silicon Double Balanced HMICTM Mixer / 1700 - 2300 MHz
Datasheet	MA4EX190H-1225_TycoElectronics.pdf

M/A-COM’s MA4EX190H-1225 is a silicon monolithic 1700-2300 MHz double balanced mixer in a low cost miniature surface mount SOT-25 package.

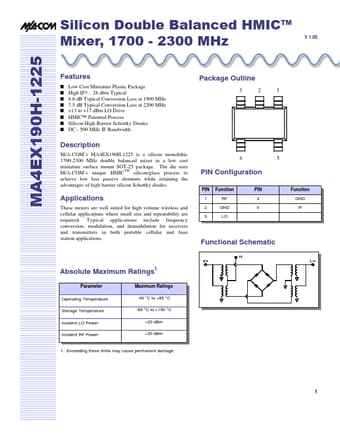

n n n n n n n n Package Outline 3 2 1 Low Cost Miniature Plastic Package High IP3 : 28 dbm Typical 6.6 dB Typical Conversion Loss at 1900 MHz 7.5 dB Typical Conversion Loss at 2200 MHz +13 to +17 dBm LO Drive HMIC™ Patented Process Silicon High Barrier Schottky Diodes DC - 500 MHz IF Bandwidth.
