MA4EX2401 Datasheet, Mixer, Tyco Electronics

MA4EX2401 Features

  • Mixer n n n n n n Chip Layout Useable Bandwidth of Operation : 20 - 26 GHz +20 dbm Typical Input IP3 8 dB Typical Conversion Loss at 24 GHz +13 to +17 dBm LO Drive IF Bandwidth : 500 MHz -

PDF File Details

Part number:

MA4EX2401

Manufacturer:

Tyco Electronics

File Size:

159.96kb

Download:

📄 Datasheet

Description:

Gaas mmic double balanced 24 ghz mixer. M/A-COM’s MA4EX2401 is a Passive GaAs MMIC Schottky Diode Double Balanced Mixer designed for 24 GHz Operation. The GaAs Quad Schottky

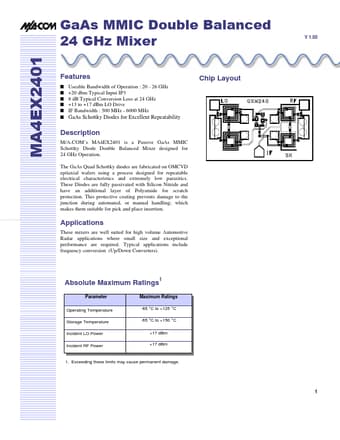

Datasheet Preview: MA4EX2401 📥 Download PDF (159.96kb)
Page 2 of MA4EX2401 Page 3 of MA4EX2401

MA4EX2401 Application

  • Applications These mixers are well suited for high volume Automotive Radar applications where small size and exceptional performance are required. T
