MA4EX240M-1225 Datasheet - Tyco

MA4EX240M-1225 Silicon Double Balanced HMICTM Mixer / 1700 - 2500 MHz

M/A-COM’s MA4EX240M-1225 is a silicon monolithic 1700-2500 MHz double balanced mixer in a low cost miniature surface mount SOT-25 package. The die uses M/A-COM’s unique HMICTM silicon/glass process to achieve low loss passive elements while retaining the advantages of medium barrier silicon Schottky.

MA4EX240M-1225_TycoElectronics.pdf

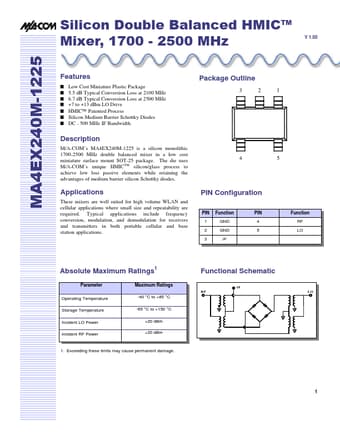

Preview of MA4EX240M-1225 PDF
MA4EX240M-1225 Datasheet Preview Page 2 MA4EX240M-1225 Datasheet Preview Page 3

Datasheet Details

Part number:

MA4EX240M-1225

Manufacturer:

Tyco

File Size:

133.46 KB

Description:

Silicon double balanced hmictm mixer / 1700 - 2500 mhz.
