MRF393 Tthe RF Line NPN Silicon Push-Pull RF Power Transistor

SEMICONDUCTOR TECHNICAL DATA Order this document by MRF393/D The RF Line NPN Silicon Push-Pull RF Power Transistor . . . designed primarily for wideband large signal output and driver amplifier stages in the 30 to 500 MHz frequency range. Specified 28 Volt, 500 MHz Characteristics Output Power = 100 W Typical Gain = 9.5 dB (Class AB); 8.5 dB (Class C) Efficiency = 55% (Typ) Built In Input Impedance Matching Networks for Broadband Operation

MRF393_TycoElectronics.pdf

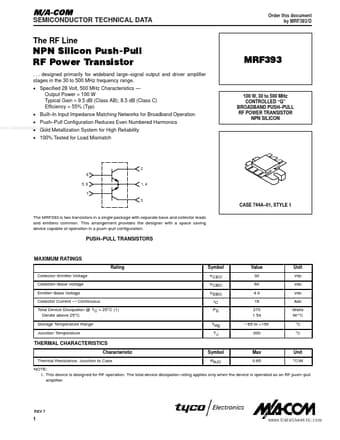

Preview of MRF393 PDF
MRF393 Datasheet Preview Page 2 MRF393 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF393

Manufacturer:

Tyco Electronics

File Size:

169.08 KB

Description:

Tthe rf line npn silicon push-pull rf power transistor.
