PH1090-15L - AVIONICS PULSED POWER TRANSISTOR

Tyco Electronics

PH1090-15L Description

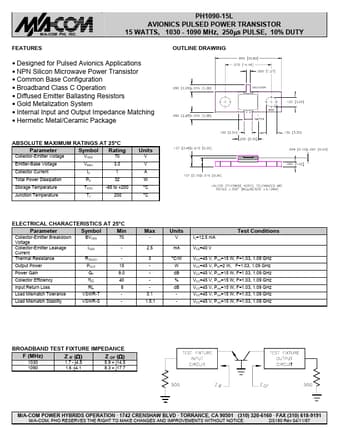

M/A-COM PHI, INC.PH1090-15L AVIONICS PULSED POWER TRANSISTOR 15 WATTS, 1030 - 1090 MHz, 250µs PULSE, 10% DUTY OUTLINE DRAWING .

PH1090-15L Applications

* NPN Silicon Microwave Power Transistor
* Common Base Configuration
* Broadband Class C Operation
* Diffused Emitter Ballasting Resistors
* Gold Metalization System
* Internal Input and Output Impedance Matching
* Hermetic Metal/Ceramic Packag

📥 Download Datasheet

PH1090-15L Datasheet Preview — Preview of PH1090-15L PDF

Datasheet Details

Part number: PH1090-15L
Manufacturer: Tyco Electronics
File Size: 91.10 KB
Datasheet: PH1090-15L_TycoElectronics.pdf
Description: AVIONICS PULSED POWER TRANSISTOR
