PH1090-350L Datasheet, Duty, Tyco Electronics

PH1090-350L Features

  • Duty
  • NPN Silicon Microwave Power Transistor Common Base Configuration Broadband Class C Operation High Efficie

PDF File Details

Part number:

PH1090-350L

Manufacturer:

Tyco Electronics

File Size:

62.78kb

Download:

📄 Datasheet

Description:

Avionics pulsed power transistor - 350 watts/1030-1090 mhz/ 250us pulse/ 10% duty. M/A-COM’s PH1090-350L is a silicon bipolar NPN power transistor intended for use in L-band, 1.2 - 1.4 GHz avionics equipment such as

Datasheet Preview: PH1090-350L 📥 Download PDF (62.78kb)

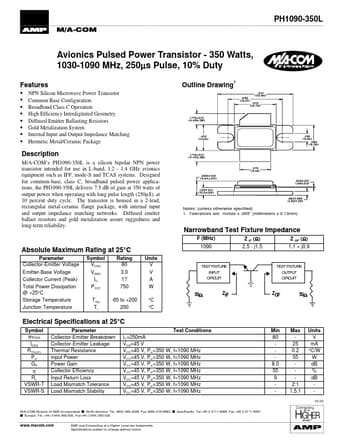

Page 2 of PH1090-350L

PH1090-350L Application

  • Applications the PH1090-350L delivers 7.5 dB of gain at 350 watts of output power when operating with long pulse length (250µS), at 10 percent duty
