UM6104-1 1K x 4 CMOS SRAM

📥 Download Datasheet  Datasheet Preview Page 1

Description

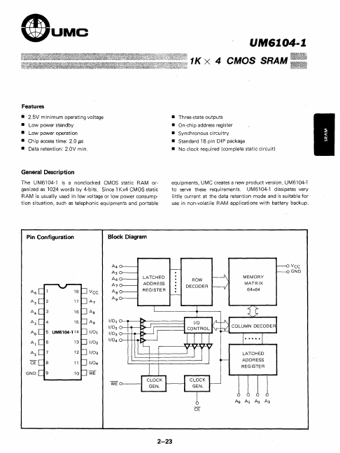

(l)UMC UM6J.04-J.CMOS SRAM .
The UM6104-1 is a nonclocked cMos static RAM or- ganized as 1024 words by 4-bits.

📥 Download Datasheet

Preview of UM6104-1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
UM6104-1
Manufacturer
UMC
File Size
161.69 KB
Datasheet
UM6104-1-UMC.pdf
Description
1K x 4 CMOS SRAM

Features

* 2.5V minimum operating voltage
* Low power standby
* Low power operation
* Chip access time: 2.0 /J. s
* Data retention: 2.0V min.
* Three-state outputs
* On-chip address register
* Synchronous circuitry
* Standard 18 pin DIP

Applications

* with battery backup. Pin Configuration Block Diagram A4 As A6 LATCHED A7 ADDRESS A6 Vce As REGISTER As A7 A9 A4 As A' 3 A9 1/01 1/02 Ao 1/01 1/03 Al 1/02 1/04 A2 1/03 CE 1/04 GND WE WE RO
