UM6104 - 1K x 4 CMOS SRAM

Datasheet Summary

Description

The UM6104 is a 1024x4 fu IIy stat ic CMOS.

RAM.

The device utilizes synchronous circuitry to achieve performance and low power operation.

Features

  • Single + 5V power supply.
  • Low power standby.
  • Low power operation.
  • Fast Access time , 120/150/200/250 ns max.
  • Data retention.
  • . . . . . 2.0V min.
  • Three-state outputs.
  • On-chip address register.
  • Synchronous circuitry.
  • Standard 18 pin DIP package.
  • TTL compatible input/output General.

📥 Download Datasheet

Datasheet preview – UM6104

Datasheet Details

Part number UM6104
Manufacturer UMC
File Size 157.45 KB
Description 1K x 4 CMOS SRAM
Datasheet download datasheet UM6104 Datasheet
Additional preview pages of the UM6104 datasheet.

📁 Similar Datasheet

  • UM610 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (UTC)
  • UM611 - DOUBLE CONSTANT VOLTAGE CONTROLLERS (UTC)
  • UM611 - 15 Watt DC-DC Converters (ETC)
  • UM612 - 15 Watt DC-DC Converters (Universal Microelectronic)
  • UM612 - 15 Watt DC-DC Converters (ETC)
  • UM612 - SPS SECONDARY-SIDE CC/CV CONTROLLER (UTC)
  • UM61256 - 32K x 8-Bit High Speed CMOS SRAM (UTRON)
  • UM612A - SPS SECONDARY-SIDE CC/CV CONTROLLER (UTC)
  • UM613 - 15 Watt DC-DC Converters (ETC)
  • UM614 - 15 Watt DC-DC Converters (ETC)
Other Datasheets by UMC
  • UM6104-1 - 1K x 4 CMOS SRAM
  • UM6114 - 1K x 4 CMOS SRAM
  • UM6116 - (UM6114) 1k x 4 CMOS SRAM
  • UM6116-2 - 2K x 8 High Speed CMOS SRAM
  • UM6116-25 - (UM6116-35 / UM6116-45) 2k x 8 High Speed CMOS SRAM
  • UM6116-3 - 2K x 8 High Speed CMOS SRAM
  • UM6116-4 - 2K x 8 High Speed CMOS SRAM
  • UM6116-5 - 2K x 8 High Speed CMOS SRAM

Full PDF Text Transcription

Click to expand full text

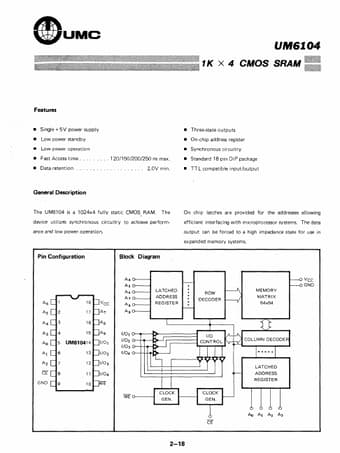

(l)UMC ============ UM6104 1K x 4 CMOS SRAM Features • Single + 5V power supply • Low power standby • Low power operation • Fast Access time ........ , 120/150/200/250 ns max. • Data retention . . . . . . . . . . . . . . . . . . .. 2.0V min. • Three-state outputs • On-chip address register • Synchronous circuitry • Standard 18 pin DIP package • TTL compatible input/output General Description The UM6104 is a 1024x4 fu IIy stat ic CMOS. RAM. The device utilizes synchronous circuitry to achieve performance and low power operation. Pin Configuration Block Diagram On chip latches are provided for the addresses allowing efficient interfacing with microprocessor systems. The data output can be forced to a high impedance state for use in expanded memory systems.
