P0770EI N-Channel MOSFET

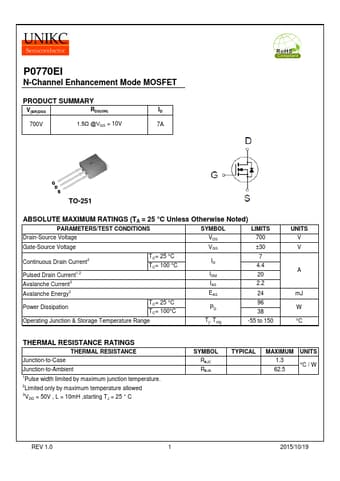

P0770EI N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 700V 1.5Ω @VGS = 10V ID 7A TO-251 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 700 Gate-Source Voltage VGS ±30 Continuous Drain Current2 Pulsed Drain Current1,2 Avalanche Current3 TC= 25 °C TC= 100 °C ID IDM IAS 7 4.4 20 2.2 Avalanche Energy3 EAS 24 Power Dissipation TC= 25 °C TC= 100°C PD 96 38 Operating Junction &.

P0770EI Datasheet (733.89 KB)
