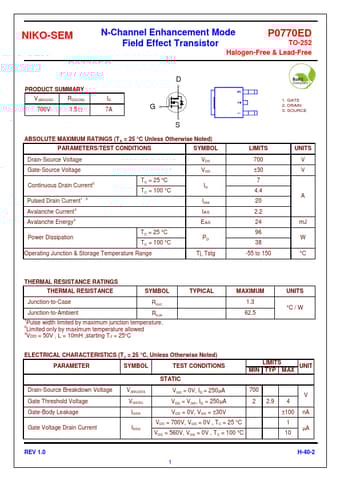

NIKO-SEM N-Channel Enhancement Mode P0770ED Field Effect Transistor TO-252 Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) ID 700V 1.5Ω 7A D G S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current2 Pulsed Drain Current1 , 2 Avalanche Current3 Avalanche Energy3 TC = 25 °C TC = 100 °C VDS VGS ID IDM IAS EAS Power Dissipation TC = 25 °C TC = 100 °C Operating
Datasheet Details
Part number:
P0770ED, P0770ED-NIKO
Manufacturer:
NIKO-SEM
File Size:
411.14 KB
Description:
N-channel enhancement mode field effect transistor.
Note:
This datasheet PDF includes multiple part numbers: P0770ED, P0770ED-NIKO.
Please refer to the document for exact specifications by model.
