P0770ETFS, P0770ETF Datasheet - UNIKC

P0770ETFS N-Channel MOSFET

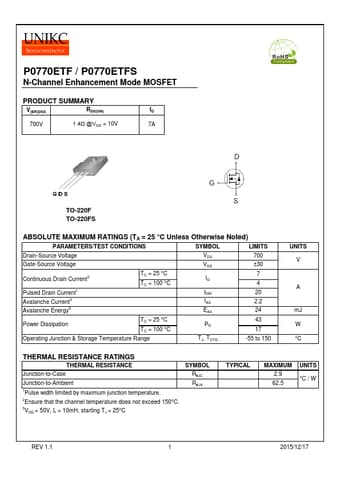

P0770ETF / P0770ETFS N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 700V 1.4Ω @VGS = 10V ID 7A TO-220F TO-220FS ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 700 Gate-Source Voltage VGS ±30 Continuous Drain Current2 Pulsed Drain Current1 Avalanche Current3 Avalanche Energy3 TC = 25 °C TC = 100 °C ID IDM IAS EAS 7 4 20 2.2 24 Power Dissipation TC = 25 °C TC = 100 °C PD 43 17.

P0770ETF-UNIKC.pdf

This datasheet PDF includes multiple part numbers: P0770ETFS, P0770ETF. Please refer to the document for exact specifications by model.
P0770ETFS Datasheet Preview Page 2 P0770ETFS Datasheet Preview Page 3

Datasheet Details

Part number:

P0770ETFS, P0770ETF

Manufacturer:

UNIKC

File Size:

800.42 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: P0770ETFS, P0770ETF.
Please refer to the document for exact specifications by model.
