P1403EK MOSFET

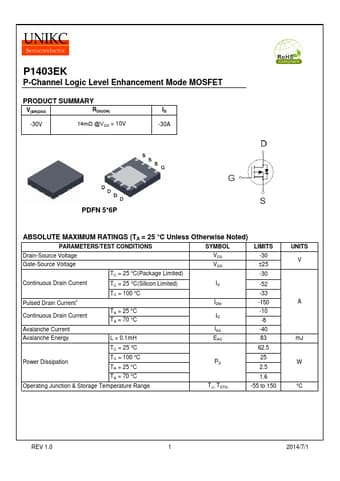

P1403EK P-Channel Logic Level Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -30V 14mΩ @VGS = 10V ID -30A PDFN 5 6P ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS -30 Gate-Source Voltage VGS ±25 TC = 25 °C(Package Limited) -30 Continuous Drain Current TC = 25 °C(Silicon Limited) ID -52 Pulsed Drain Current1 TC = 100 °C -33 IDM -150 Continuous Drain Current TA = 25 °C TA = 70 °C.

P1403EK Datasheet (485.41 KB)
