P2803NVG N&P-Channel MOSFET

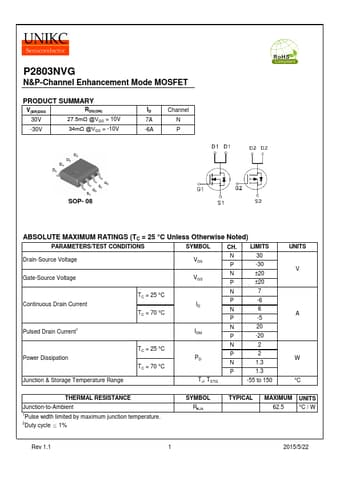

P2803NVG N&P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS 30V RDS(ON) 27.5mΩ @VGS = 10V -30V 34mΩ @VGS = -10V ID Channel 7A N -6A P SOP- 08 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL CH. LIMITS Drain-Source Voltage N 30 VDS P -30 Gate-Source Voltage N ±20 VGS P ±20 Continuous Drain Current TC = 25 °C TC = 70 °C N7 P -6 ID N 6 P -5 Pulsed Drain Current1 N 20 IDM P -20 Power Dissipation TC = 25 °C TC = 70 °C N2 .

P2803NVG Datasheet (507.99 KB)
