P2806HV N-Channel MOSFET

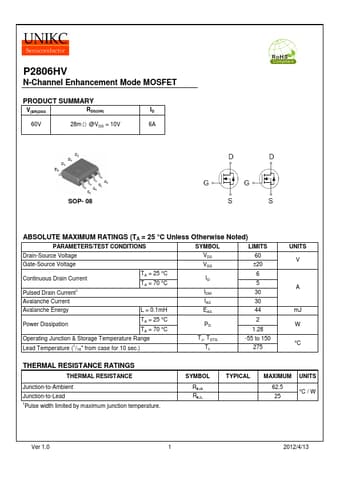

P2806HV N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 60V 28mΩ @VGS = 10V ID 6A SOP- 08 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 60 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM 6 5 30 Avalanche Current IAS 30 Avalanche Energy L = 0.1mH EAS 44 Power Dissipation TA = 25 °C TA = 70 °C PD 2 1.28 Operating Ju.

P2806HV Datasheet (315.92 KB)
