PA110BDA Datasheet - UNIKC

PA110BDA - N-Channel Transistor

PA110BDA N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 100V 105mΩ @VGS = 10V ID 15A TO-252 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 100 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C ID IDM 15 9.2 20 Avalanche Current IAS 5.4 Avalanche Energy L =1mH EAS 14.8 Power Dissipation TC = 25 °C TC = 100 °C PD 50 20 Junc

PA110BDA-UNIKC.pdf

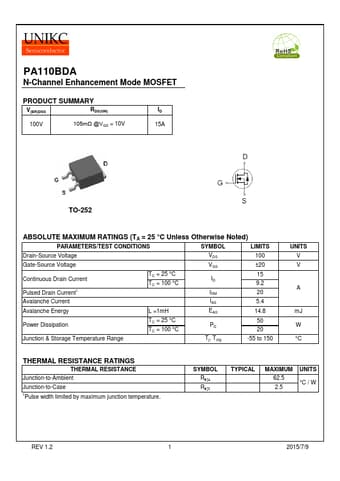

Preview of PA110BDA PDF
PA110BDA Datasheet Preview Page 2 PA110BDA Datasheet Preview Page 3

Datasheet Details

Part number:

PA110BDA

Manufacturer:

UNIKC

File Size:

706.42 KB

Description:

N-channel transistor.
