PM506BA - N-Channel MOSFET

PM506BA N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 30V 60mΩ @VGS = 10V ID 3.5A SOT-23(S) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM 3.5 2.8 20 Power Dissipation3 TA = 25 °C TA = 70 °C PD 1.3 0.8 Operating Junction & Storage Temperature Range TJ, TSTG -55 to 150 UNITS V A W °C THERMAL RES.

PM506BA-UNIKC.pdf

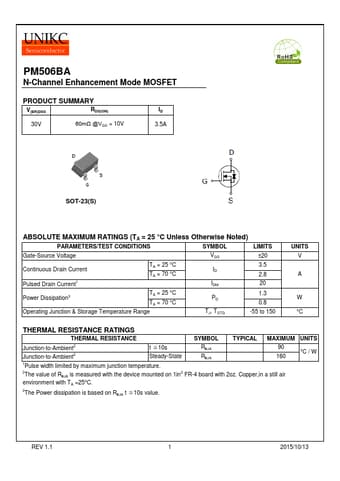

PM506BA Datasheet Preview — Preview of PM506BA PDF

Datasheet Details

Part number:

PM506BA

Manufacturer:

UNIKC

File Size:

725.75 KB

Description:

N-channel mosfet.
