PM509BA Datasheet - UNIKC

PM509BA P-Channel MOSFET

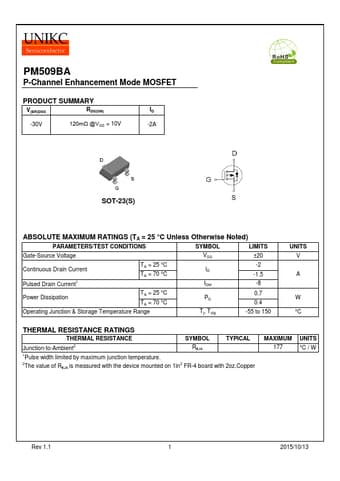

PM509BA P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -30V 120mΩ @VGS = 10V ID -2A SOT-23(S) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM -2 -1.5 -8 Power Dissipation TA = 25 °C TA = 70 °C PD 0.7 0.4 Operating Junction & Storage Temperature Range Tj, Tstg -55 to 150 UNITS V A W °C THERMAL RE.
