PM503BA - P-Channel MOSFET

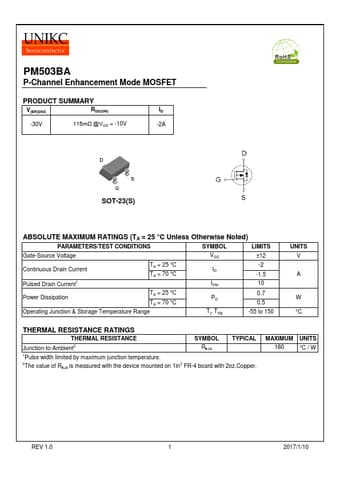

PM503BA P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -30V 115mΩ @VGS = -10V ID -2A SOT-23(S) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±12 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM -2 -1.5 10 Power Dissipation TA = 25 °C TA = 70 °C PD 0.7 0.5 Operating Junction & Storage Temperature Range Tj, Tstg -55 to 150 UNITS V A W °C THERMAL R.

PM503BA-UNIKC.pdf

PM503BA Datasheet Preview — Preview of PM503BA PDF

Datasheet Details

Part number:

PM503BA

Manufacturer:

UNIKC

File Size:

734.46 KB

Description:

P-channel mosfet.
