PM505BA - P-Channel MOSFET

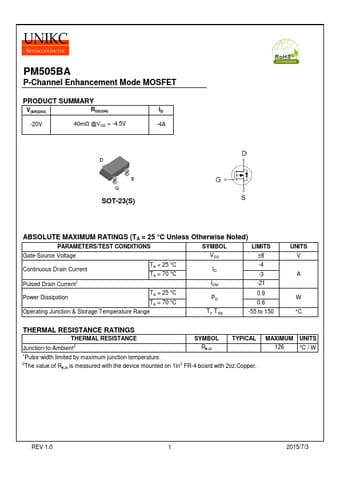

PM505BA P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -20V 40mΩ @VGS = -4.5V ID -4A SOT-23(S) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±8 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM -4 -3 -21 Power Dissipation TA = 25 °C TA = 70 °C PD 0.9 0.6 Operating Junction & Storage Temperature Range Tj, Tstg -55 to 150 UNITS V A W °C THERMAL RES.

PM505BA-UNIKC.pdf

PM505BA Datasheet Preview — Preview of PM505BA PDF

Datasheet Details

Part number:

PM505BA

Manufacturer:

UNIKC

File Size:

720.90 KB

Description:

P-channel mosfet.
