PM557BA P-Channel MOSFET

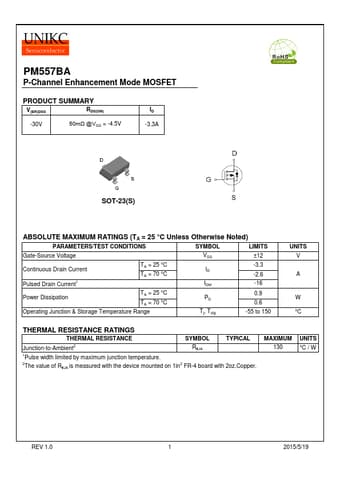

PM557BA P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -30V 50mΩ @VGS = -4.5V ID -3.3A SOT-23(S) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±12 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM -3.3 -2.6 -16 Power Dissipation TA = 25 °C TA = 70 °C PD 0.9 0.6 Operating Junction & Storage Temperature Range Tj, Tstg -55 to 150 UNITS V A W °C THER.

PM557BA Datasheet (473.17 KB)
