LM1851 - GROUND FAULT INTERRUPTER

LM1851 Description

UTC LM1851 LINEAR INTEGRATED CIRCUIT GROUND FAULT INTERRUPTER .
The UTC LM1851 is designed to provide ground fault protection for AC power outlets in consumer and industrial environments.

LM1851 Features

* include circuitry that rapidly resets the timing capacitor in the event that noise pulses introduce unwanted charging currents and a memory circuit that allows firing of even a sluggish breaker on either half-cycle of the line voltage when external full-wave rectification is used. DIP-8 SOP-8 FEA

📥 Download Datasheet

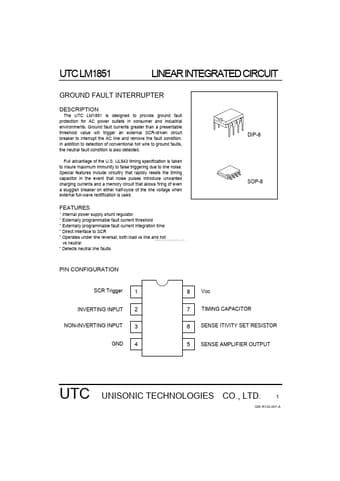

Preview of LM1851 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM1851
Manufacturer
UTC
File Size
182.17 KB
Datasheet
LM1851_UTC.pdf
Description
GROUND FAULT INTERRUPTER
