U74LVC827 - 10-BIT BUFFER/DRIVER

UTC

📥 Download Datasheet

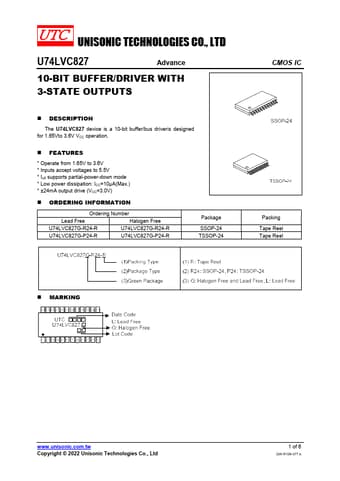

U74LVC827 Datasheet Preview — Preview of U74LVC827 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74LVC827
Manufacturer	UTC
File Size	725.50 KB
Description	10-BIT BUFFER/DRIVER
Datasheet	U74LVC827-UTC.pdf

U74LVC827 Product details

Description

The U74LVC827 device is a 10-bit buffer/bus driveris designed for 1.65Vto 3.6V VCC operation.

Features

S.
Operate from 1.65V to 3.6V.
Inputs accept voltages to 5.5V.
Ioff supports partial-power-down mode.
Low power dissipation: ICC=10μA(Max. ).
±24mA output drive (VCC=3.0V).
