Part number: 11N60K-MT
Manufacturer: Unisonic Technologies
File Size: 216.56KB
Download: 📄 Datasheet
Description: N-CHANNEL POWER MOSFET
Part number: 11N60K-MT
Manufacturer: Unisonic Technologies
File Size: 216.56KB
Download: 📄 Datasheet
Description: N-CHANNEL POWER MOSFET
* RDS(ON) < 1.00 Ω @ VGS = 10 V, ID = 5.5 A * Fast Switching * With 100% Avalanche Tested
* SYMBOL
2.Drain
Power MOSFET
1.Gate
3.Source
* ORDERING INFORMATION.

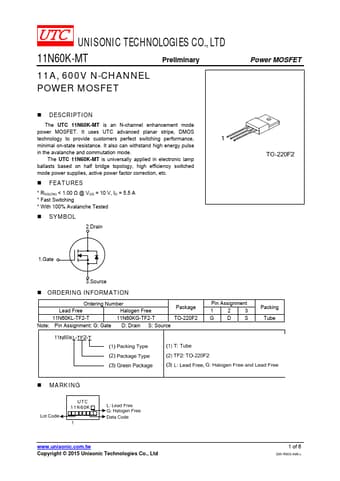

The UTC 11N60K-MT is an N-channel enhancement mode power MOSFET. It uses UTC advanced planar stripe, DMOS technology to provide customers perfect switching performance, minimal on-state resistance. It also can withstand high energy pulse in the avala.
