U74AHCT374 Datasheet, Flip-flops, Unisonic Technologies

U74AHCT374 Features

  • Flip-flops
  • Inputs are TTL-Voltage Compatible
  • Operate from 4.5V to 5.5V
  • Inputs Accept Voltages to 5.5V
  • Max tPD of 9.4ns at VCC=5V, CL=15pF
  • Typical

PDF File Details

Part number:

U74AHCT374

Manufacturer:

Unisonic Technologies

File Size:

235.27kb

Download:

📄 Datasheet

Description:

Octal edge-triggered d-type flip-flops. The U74AHCT374 is a octal edge-triggered D-type flip-flops with 3-state outputs and 8 channels. When the OE input is low, on the pos

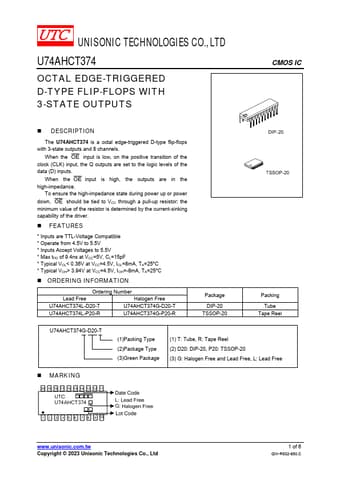

Datasheet Preview: U74AHCT374 📥 Download PDF (235.27kb)
Page 2 of U74AHCT374 Page 3 of U74AHCT374
