U74AHC132 Datasheet, Gates, UTC

U74AHC132 Features

  • Gates
  • Operate from 2V to 5.5V
  • Operation form very slow input transitions
  • Temperature-Compensated threshold levels
  • Balanced propagation delays

PDF File Details

Part number:

U74AHC132

Manufacturer:

UTC

File Size:

275.06kb

Download:

📄 Datasheet

Description:

Quadruple positive-nand gates. The U74AHC132 is a device is a quadruple positive NAND gate designed for 2V to 5.5V VCC operation. This device performs the Boolean f

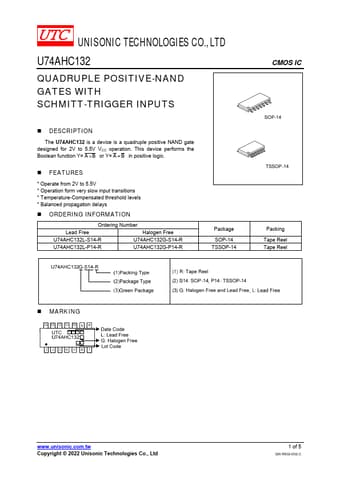

Datasheet Preview: U74AHC132 📥 Download PDF (275.06kb)
Page 2 of U74AHC132 Page 3 of U74AHC132
