U74AHC164 Datasheet - Unisonic Technologies

8-Bit Serial-In/Parallel-Out Shift Register

U74AHC164 Features

* Operate From 2V to 5.5V

* Schmitt on all inputs

* Balanced propagation delays

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AHC164L-S14-R U74AHC164G-S14-R U74AHC164L-P14-R U74AHC164G-P14-R Package SOP-14 TSSOP-14 CMOS IC Packing Tape Reel Tape Reel

U74AHC164 General Description

The U74AHC164 is an 8-bit serial-in/parallel-out shift register. The logical AND of the Dsa and Dsb enters into Q0 and shifts one place to right on each LOW-to-HIGH transition of the clock (CP). A low level on the master reser ( MR )input clears all the register asynchronously and force all output L.

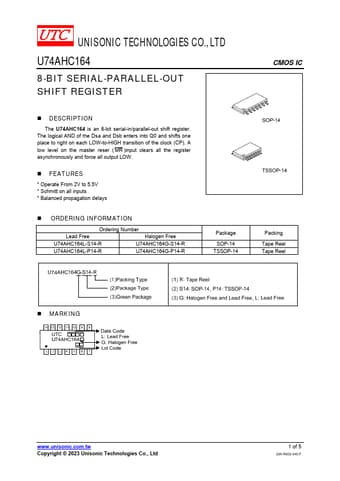

U74AHC164 Datasheet (251.58 KB)

U74AHC164 Datasheet Preview — Preview of U74AHC164 PDF

Datasheet Details

Part number:

U74AHC164

Manufacturer:

Unisonic Technologies

File Size:

251.58 KB

Description:

8-bit serial-in/parallel-out shift register.
