U74AHC126 Datasheet, Gate, Unisonic Technologies

U74AHC126 Features

  • Gate
  • Operate from 2V to 5.5V
  • Max tpd of 5.5ns at 5 V(CL=15pF)
  • Typical VIH< 2.1V at VCC=3V, Ta=25°C
  • Typical VIL> 0.9V at VCC=3V, Ta=25°C
  • ORD

PDF File Details

Part number:

U74AHC126

Manufacturer:

Unisonic Technologies

File Size:

250.89kb

Download:

📄 Datasheet

Description:

Quadruple bus buffer gate. The U74HC126 is a quadruple bus buffer gate with 3-state outputs and 4 channels.

  • FEATURES
  • Operate from 2V to 5.5V

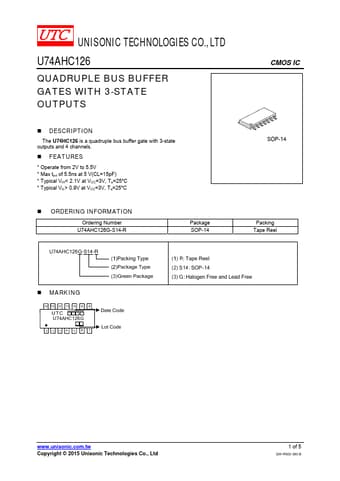

  • Datasheet Preview: U74AHC126 📥 Download PDF (250.89kb)
    Page 2 of U74AHC126 Page 3 of U74AHC126
