U74AHC157 Datasheet, Selectors/multiplexers, Unisonic Technologies

U74AHC157 Features

• Selectors/multiplexers
• Wide supply voltage range from 2V to 5.5V
• Max tPD of 4.1ns from A or B to Y at 5V, CL=15pF
• Low power consumption, ICC = 4 μA (MAX) at 5.5V
• ±8 mA

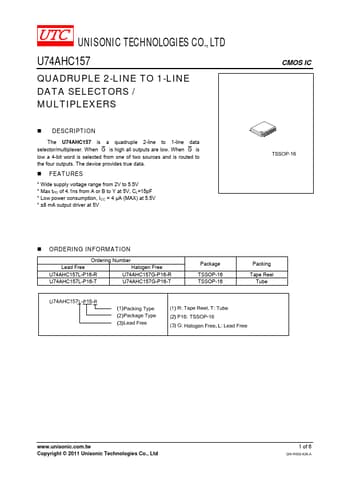

PDF File Details

Part number:

U74AHC157

Manufacturer:

Unisonic Technologies

File Size:

199.23kb

Download:

📄 Datasheet

Description:

Quadruple 2-line to 1-line data selectors/multiplexers. The U74AHC157 is a quadruple 2-line to 1-line data selector/multiplexer. When G is high all outputs are low. When G is low a 4-bit wo
