U74AHC158 - QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS

Unisonic Technologies

U74AHC158 Description

UNISONIC TECHNOLOGIES CO., LTD U74AHC158 QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS * .
The U74AHC158 is a quadruple 2-line to 1-line data selector/multiplexer.

U74AHC158 Features

* Wide supply voltage range from 2V to 5.5V
* Max tpd of 4.1ns from A or B to Y at 5V, CL=15pF
* Low power consumption, ICC = 4 μA (Max. ) at 5.5V
* ±8 mA output driver at 5V CMOS IC
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AHC158L-P16-R U74AHC15

📥 Download Datasheet

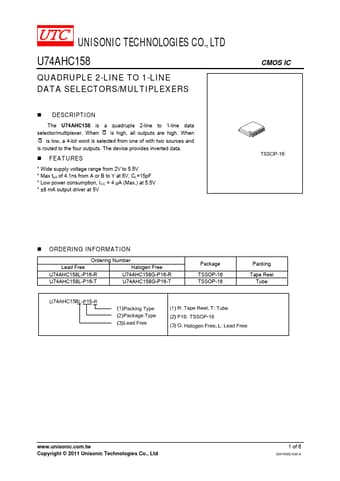

U74AHC158 Datasheet Preview — Preview of U74AHC158 PDF

Datasheet Details

Part number: U74AHC158
Manufacturer: Unisonic Technologies
File Size: 209.73 KB
Datasheet: U74AHC158-UnisonicTechnologies.pdf
Description: QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS
