U74AHC125 QUADRUPLE BUS BUFFER GATE

The U74AHC125 is a quadruple bus buffer gate with 3-state output. When OE is high, the Y output is in a high-impedance state. When OE is low, the device passes non inverted data from the A input to the Y output. To ensure the high-impedance state during power up or power down, OE should be tied to V.

U74AHC125 Features

* Wide supply voltage range from 2V to 5.5V

* Max tPD of 3.8ns from A to Y at 5V, CL=15pF

* Low Quiescent Current: ICC = 4 μA (Max.) at 5.5V

* ±8 mA Output Driver at 5V CMOS IC SOP-14

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AHC125L-S14-R U74AHC

U74AHC125-UnisonicTechnologies.pdf

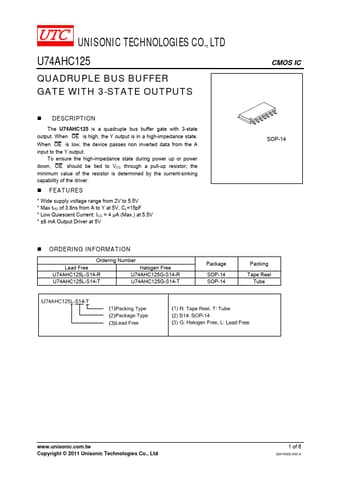

Preview of U74AHC125 PDF
U74AHC125 Datasheet Preview Page 2 U74AHC125 Datasheet Preview Page 3

Datasheet Details

Part number:

U74AHC125

Manufacturer:

Unisonic Technologies

File Size:

202.77 KB

Description:

Quadruple bus buffer gate.
