U74AHC1G00 - 2-INPUT NAND GATE

Datasheet Summary

Description

Function Y = Α ×Β .

Features

  • Operation Voltage Range: 2~5.5V.
  • Low Power Dissipation: ICC=1.0μA (Max).
  • High Speed: tPD=4.3ns (Typ) CMOS IC.

📥 Download Datasheet

Datasheet preview – U74AHC1G00

Datasheet Details

Part number U74AHC1G00
Manufacturer UTC
File Size 575.30 KB
Description 2-INPUT NAND GATE
Datasheet download datasheet U74AHC1G00 Datasheet
Additional preview pages of the U74AHC1G00 datasheet.

📁 Similar Datasheet

  • U74AHC1G02 - 2-INPUT NOR GATE (Unisonic Technologies)
  • U74AHC1G04 - SINGLE INVERTER GATE (Unisonic Technologies)
  • U74AHC1G06 - INVERTER (Unisonic Technologies)
  • U74AHC1G07 - BUFFER (Unisonic Technologies)
  • U74AHC1G09 - 2-INPUT AND GATE (Unisonic Technologies)
  • U74AHC1G125 - SINGLE BUS BUFFER GATE (Unisonic Technologies)
  • U74AHC1G126 - SINGLE BUS BUFFER GATE (Unisonic Technologies)
  • U74AHC1G14 - SINGLE SCHMITT-TRIGGER INVERTER GATE (Unisonic Technologies)
  • U74AHC1G32 - SINGLE 2-INPUT POSITIVE-OR GATE (Unisonic Technologies)
  • U74AHC1G34 - SINGLE NON-INVERTING GATE (Unisonic Technologies)
Other Datasheets by UTC

Full PDF Text Transcription

Click to expand full text

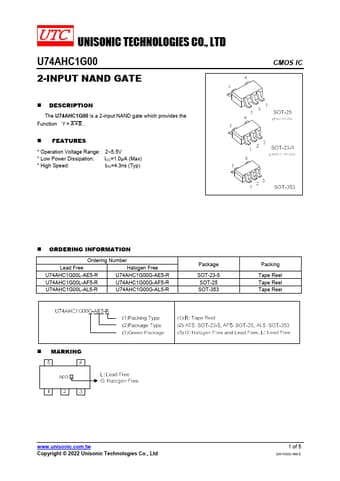

UNISONIC TECHNOLOGIES CO., LTD U74AHC1G00 2-INPUT NAND GATE  DESCRIPTION The U74AHC1G00 is a 2-input NAND gate which provides the Function Y = Α ×Β .  FEATURES * Operation Voltage Range: 2~5.5V * Low Power Dissipation: ICC=1.0μA (Max) * High Speed: tPD=4.3ns (Typ) CMOS IC  ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AHC1G00L-AE5-R U74AHC1G00G-AE5-R U74AHC1G00L-AF5-R U74AHC1G00G-AF5-R U74AHC1G00L-AL5-R U74AHC1G00G-AL5-R Package SOT-23-5 SOT-25 SOT-353 Packing Tape Reel Tape Reel Tape Reel  MARKING www.unisonic.com.tw Copyright © 2022 Unisonic Technologies Co., Ltd 1 of 5 QW-R502-069.
