U74AHC1G09 Datasheet, Gate, Unisonic Technologies

U74AHC1G09 Features

  • Gate
  • Operation Voltage Range: 2~5.5V
  • Low Quiescent Current: ICC=1μA(Max)
  • High Speed: tPD=6ns@5V(Max) CMOS IC
  • ORDERING INFORMATION Ordering Numb

PDF File Details

Part number:

U74AHC1G09

Manufacturer:

Unisonic Technologies

File Size:

167.84kb

Download:

📄 Datasheet

Description:

2-input and gate. The U74AHC1G09 is a 2-input AND gate with open-drain output. And it provides the function Y=A×B. FEATURES Opera

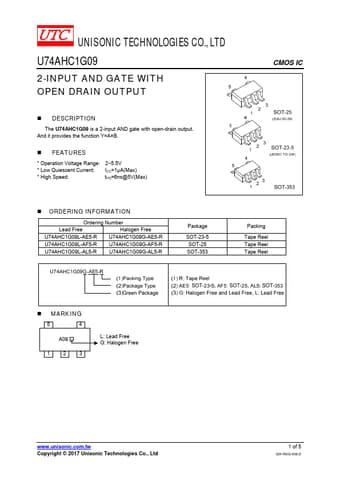

Datasheet Preview: U74AHC1G09 📥 Download PDF (167.84kb)
Page 2 of U74AHC1G09 Page 3 of U74AHC1G09
