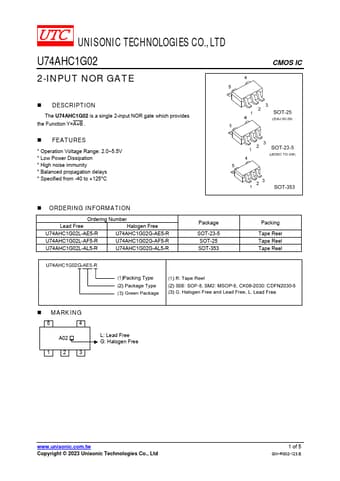

U74AHC1G02 Datasheet, Gate, Unisonic Technologies

U74AHC1G02 Features

• Gate
• Operation Voltage Range: 2.0~5.5V
• Low Power Dissipation
• High noise immunity
• Balanced propagation delays
• Specified from -40 to +125°C <

PDF File Details

Part number:

U74AHC1G02

Manufacturer:

Unisonic Technologies

File Size:

173.73kb

Download:

📄 Datasheet

Description:

2-input nor gate. The U74AHC1G02 is a single 2-input NOR gate which provides the Function Y=A+B .

FEATURES

Operation Voltage Range:

TAGS

U74AHC1G02

Unisonic Technologies
