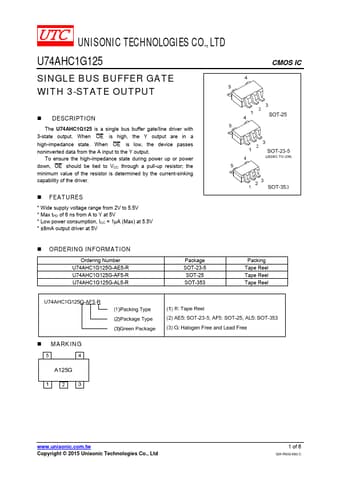

U74AHC1G125 Datasheet, Gate, Unisonic Technologies

U74AHC1G125 Features

• Gate
• Wide supply voltage range from 2V to 5.5V
• Max tPD of 6 ns from A to Y at 5V
• Low power consumption, ICC = 1μA (Max) at 5.5V
• ±8mA output driver at

PDF File Details

Part number:

U74AHC1G125

Manufacturer:

Unisonic Technologies

File Size:

238.06kb

Download:

📄 Datasheet

Description:

Single bus buffer gate. The U74AHC1G125 is a single bus buffer gate/line driver with 3-state output. When OE is high, the Y output are in a high-impedance st
