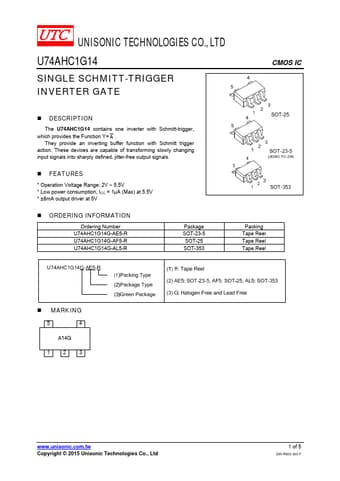

U74AHC1G14 Datasheet, Gate, Unisonic Technologies

U74AHC1G14 Features

• Gate
• Operation Voltage Range: 2V ~ 5.5V
• Low power consumption, ICC = 1μA (Max) at 5.5V
• ±8mA output driver at 5V
• ORDERING INFORMATION Ordering Number

PDF File Details

Part number:

U74AHC1G14

Manufacturer:

Unisonic Technologies

File Size:

187.12kb

Download:

📄 Datasheet

Description:

Single schmitt-trigger inverter gate. The U74AHC1G14 contains one inverter with Schmitt-trigger, which provides the Function Y= A . They provide an inverting buffer functi

TAGS

U74AHC1G14

Unisonic Technologies
