U74AHC1G126 Datasheet, Gate, Unisonic Technologies

U74AHC1G126 Features

  • Gate
  • Wide supply voltage range from 2V to 5.5V
  • Max tpd of 6 ns from A to Y at 5V
  • Low power consumption, ICC = 1 μA (Max.) at 5.5V
  • ±8 mA output driver

PDF File Details

Part number:

U74AHC1G126

Manufacturer:

Unisonic Technologies

File Size:

224.22kb

Download:

📄 Datasheet

Description:

Single bus buffer gate. The U74AHC1G126 is a single bus buffer gate/line driver with 3-state output. When OE is low, the Y output are in a high-impedance st

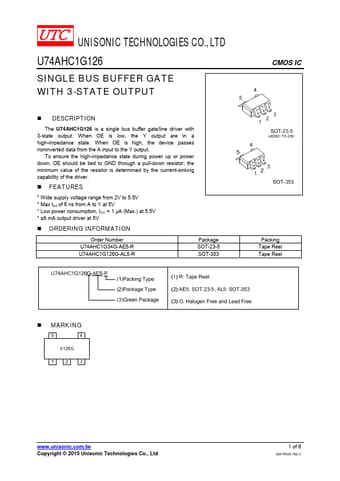

Datasheet Preview: U74AHC1G126 📥 Download PDF (224.22kb)
Page 2 of U74AHC1G126 Page 3 of U74AHC1G126
